SPARKAL® X and X Fin Tungsten Copper Round Bars for EDM Electrodes

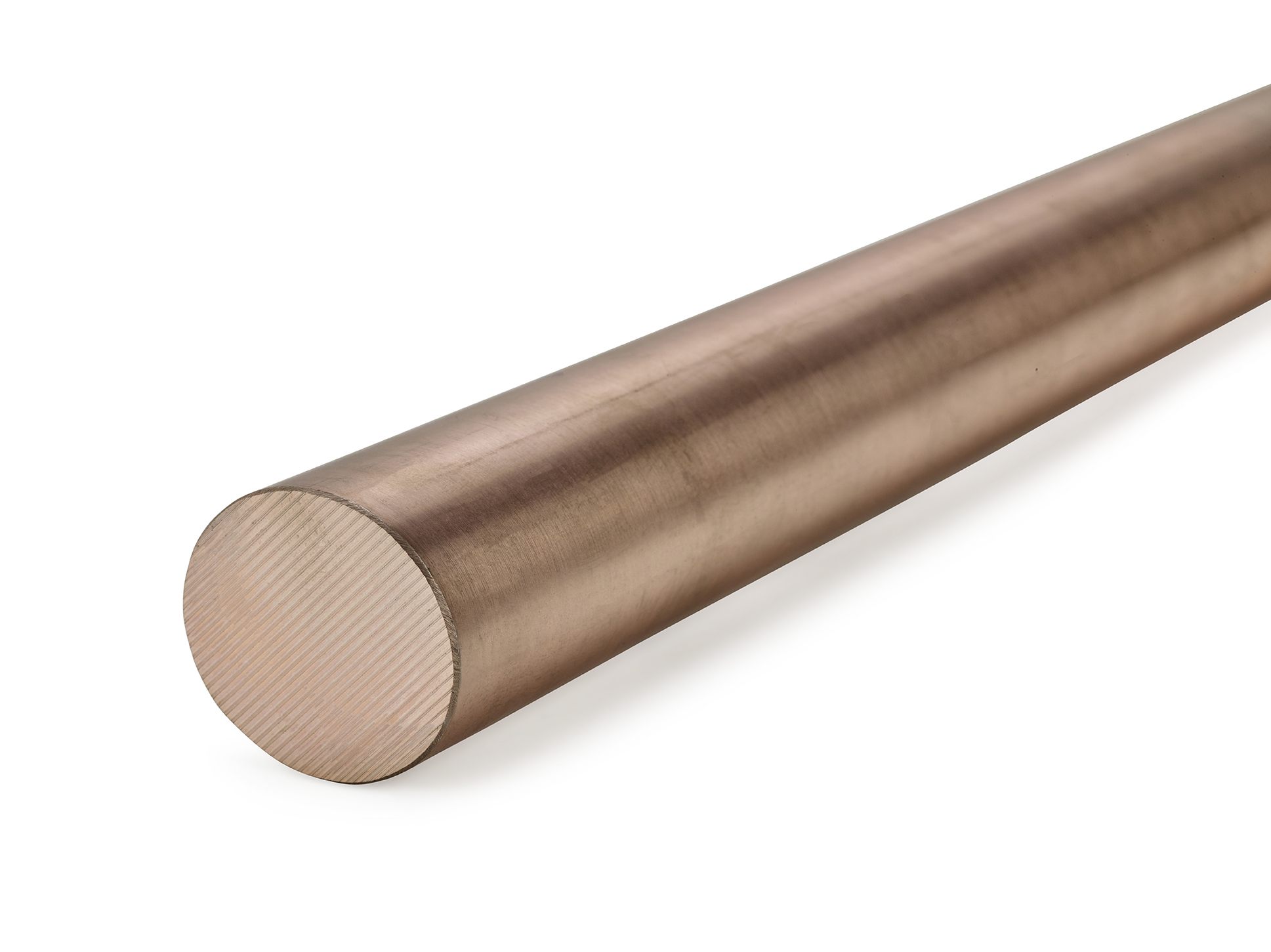

SPARKAL® X Tungsten Copper Round Bars
Technical data SPARKAL® X (W75/Cu25)
• Type: impregnated product (WCu)
• Density: 15.00 ± 0.30 g/cm³
• Hardness: > 200 HV10
• Electrical conductivity: > 30 % IACS
• Composition: W 75 % / Cu 25 % (Cu 23 ± 3 %; others < 0.6 %)

Technical data Sparkal X Fin (W80/Cu20):
• Impregnated product
• Density: approx. 15.6 g/cm³
• Hardness: > 220 HV10
• Electrical conductivity: > 28% IACS
• Composition: 80% Tungsten / 20% Copper (±3%)


Available sizes (SPARKAL® X round rods)
• Ø 8 × 350 mm — diameter tolerance 0 /+ 0.22 mm; length 0 /+ 1.0 mm
• Ø 10 × 350 mm — diameter tolerance 0 /+ 0.22 mm; length 0 /+ 1.0 mm
• Ø 12 × 350 mm — diameter tolerance 0 /+ 0.27 mm; length 0 /+ 1.0 mm
• Ø 14 × 350 mm — diameter tolerance 0 /+ 0.27 mm; length 0 /+ 1.0 mm
• Ø 16 × 350 mm — diameter tolerance 0 /+ 0.27 mm; length 0 /+ 1.0 mm
• Ø 18 × 350 mm — diameter tolerance 0 /+ 0.27 mm; length 0 /+ 1.0 mm
• Ø 20 × 350 mm — diameter tolerance 0 /+ 0.33 mm; length 0 /+ 1.0 mm
• Ø 25 × 350 mm — diameter tolerance 0 /+ 0.33 mm; length 0 /+ 1.0 mm
• Ø 30 × 350 mm — diameter tolerance 0 /+ 0.33 mm; length 0 /+ 1.0 mm
• Ø 35 × 350 mm — diameter tolerance 0 /+ 0.39 mm; length 0 /+ 1.0 mm
• Ø 40 × 350 mm — diameter tolerance 0 /+ 0.39 mm; length 0 /+ 1.0 mm
• Ø 45 × 350 mm — diameter tolerance 0 /+ 0.39 mm; length 0 /+ 1.0 mm
• Ø 50 × 350 mm — diameter tolerance 0 /+ 0.39 mm; length 0 /+ 1.0 mm
• Ø 60 × 350 mm — diameter tolerance 0 /+ 0.46 mm; length 0 /+ 1.0 mm
• Ø 70 × 350 mm — diameter tolerance 0 /+ 0.46 mm; length 0 /+ 1.0 mm
• Ø 80 × 300 mm — diameter tolerance 0 /+ 0.54 mm; length 0 /+ 1.0 mm
• Ø 90 × 230 mm — diameter tolerance 0 /+ 0.54 mm; length 0 /+ 1.0 mm
• Other sizes available from stock or on request


Available sizes (SPARKAL® X Fin round rods)
• Ø 0,5 × 175 mm — diameter tolerance 0 /+ 0,025 mm; length 0 /+ 5,0 mm
• Ø 0,8 × 175 mm — diameter tolerance 0 /+ 0,025 mm; length 0 /+ 5,0 mm
• Ø 0,9 × 175 mm — diameter tolerance 0 /+ 0,025 mm; length 0 /+ 5,0 mm
• Ø 1,0 × 175 mm — diameter tolerance 0 /+ 0,025 mm; length 0 /+ 5,0 mm
• Ø 1,5 × 175 mm — diameter tolerance 0 /+ 0,025 mm; length 0 /+ 5,0 mm
• Ø 2,0 × 175 mm — diameter tolerance 0 /+ 0,025 mm; length 0 /+ 5,0 mm
• Ø 2,5 × 175 mm — diameter tolerance 0 /+ 0,025 mm; length 0 /+ 5,0 mm
• Ø 3,0 × 175 mm — diameter tolerance 0 /+ 0,025 mm; length 0 /+ 5,0 mm
• Ø 4,0 × 175 mm — diameter tolerance 0 /+ 0,030 mm; length 0 /+ 5,0 mm
• Ø 5,0 × 175 mm — diameter tolerance 0 /+ 0,030 mm; length 0 /+ 5,0 mm
• Ø 6,0 × 175 mm — diameter tolerance 0 /+ 0,036 mm; length 0 /+ 5,0 mm
• Other sizes available from stock or on request


Notes
• Length varies depending on nominal diameter.
• Bars supplied with ground or drawn surface finish.
