Carl Hirschmann: tooling systems for EDM and WEDM machines
Carl Hirschmann
Carl Hirschmann workholding systems represent the highest standard of quality and precision for wire and sinker EDM processes.
As the exclusive distributor for Italy, Scumed offers the full range of workholding solutions from this prestigious brand.
Carl Hirschmann systems are designed to ensure stability, reliability and ease of use, making every machining process more efficient and precise. With a positioning accuracy of just 2 microns, they are the perfect ally for EDM professionals.

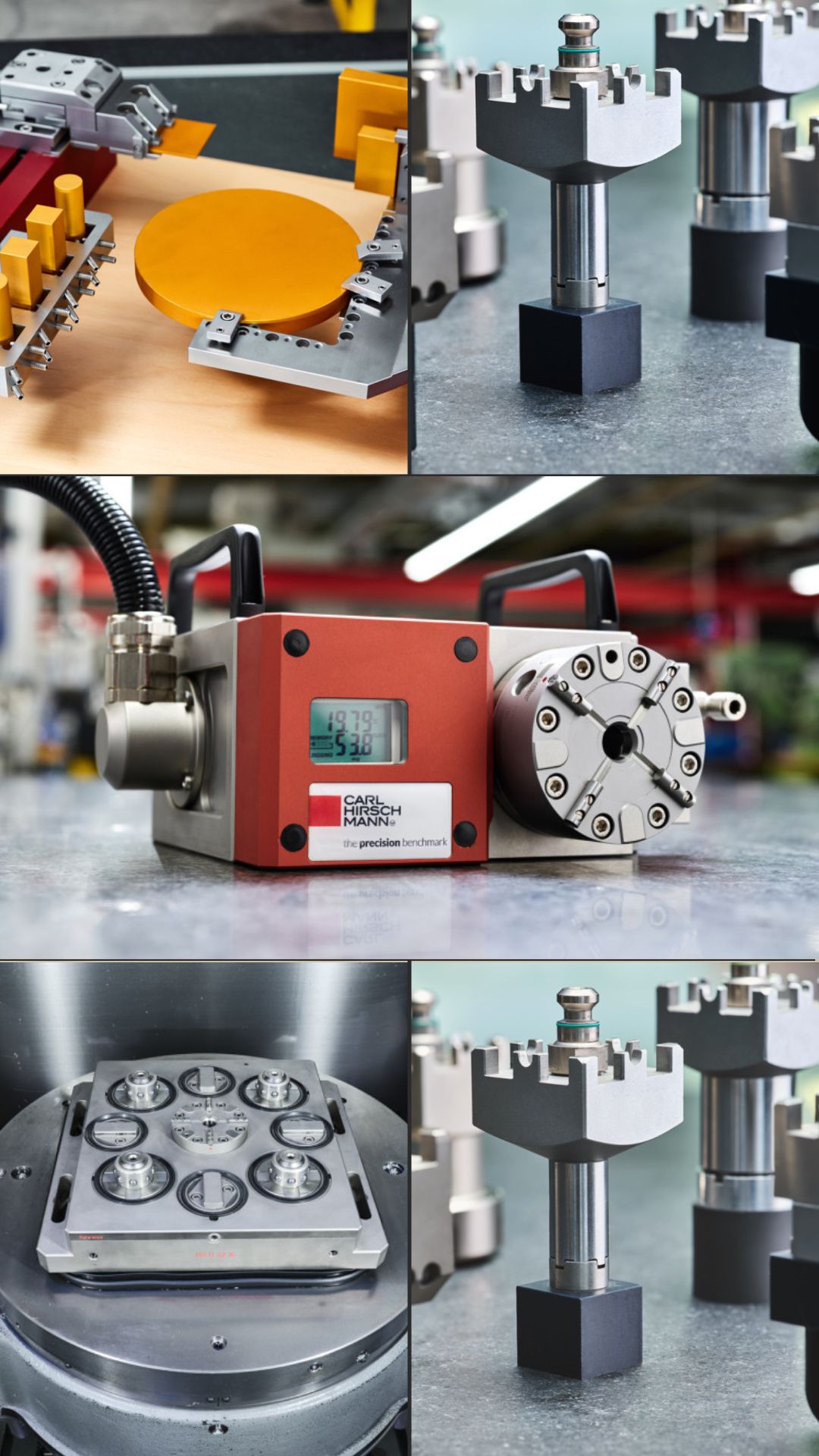

Carl Hirschmann Workholding Systems: Product Range

Carl Hirschmann tooling is designed to deliver superior performance in any EDM application and beyond:

•System 4000 for Wire EDM: Crossbeam/frame system or pallet/workpiece holder system, or both in combination.

•System 5000 for Sinker EDM: The Reference System 5000 is a universal, high-precision workholding system for electrodes and workpieces. It can be used on all sinker EDM machines or metal cutting machining centers.

•System 8000 for Machining Centers: The 8000 clamping system is used as a reference system for palletizing workpieces on milling, drilling, surface grinding machines, machine tools and sinker EDM machines. Pallets can be changed manually or automatically via handling units and robots.

•System 9000 Zero-Point: Fast and precise clamping and referencing of devices and components on EDM machines, all chip-removal machine tools, CNC machining centers and measuring equipment.

•µ-PrisFix Nano System: The Carl Hirschmann clamping system specifically designed for high-precision manufacturing of small components. µ-PrisFix-Nano ensures an average repeatability of ≤ 0.1 µm (same clamping) and a change accuracy (from one clamping to another) of ≤ 0.5 µm.

•Indexing Rotary Tables: With decades of experience and advanced engineering, Carl Hirschmann is the leading manufacturer of submersible rotary tables. The product range includes single and multiple axes, tilt/rotary tables, indexing spindles and high-speed spindles.

VIDEO EXPERIENCE
FAQs

What are Carl Hirschmann workholding systems?
Carl Hirschmann workholding systems are fixturing solutions designed for EDM processes, ensuring precision and stability during machining.

Are they compatible with all EDM machines?
Yes, Carl Hirschmann workholding systems are designed to be compatible with most wire and sinker EDM machines.

What advantages do they offer compared to traditional fixturing systems?
They provide extremely precise and much faster clamping, reducing setup times and increasing machine productivity.

Discover the advantages of Carl Hirschmann workholding systems
Optimize your machining processes with Carl Hirschmann workholding systems, exclusively available from Scumed. Contact us today for more information and a personalized quote. Fill out the form on our website and discover how we can help you boost your productivity!
